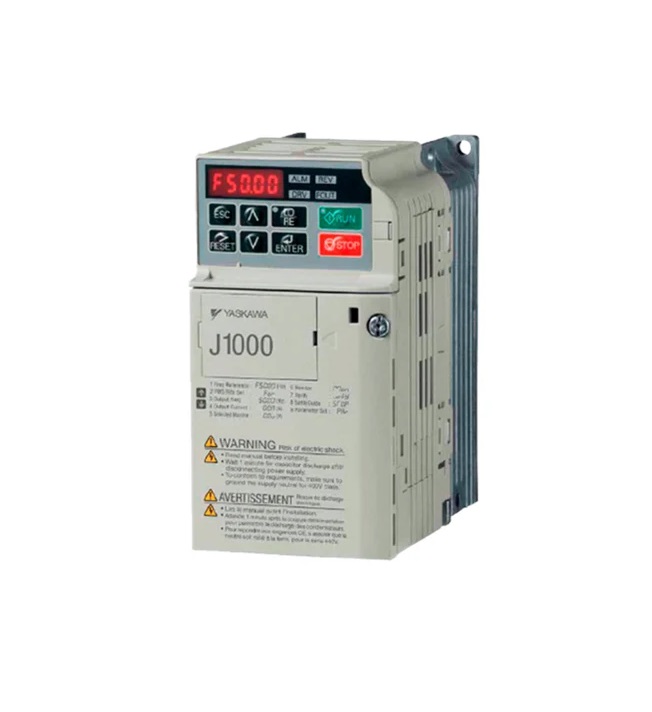

J1000
Compact V/F Control Drives
J1000
Compact V/F Control Drives
The J1000 is a world-class compact variable frequency drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa drives have earned a reputation for high performance, high functionality, and high quality. Great things come in small packages!
Ratings:
- 1 Phase 200VAC, 0.2kW to 2.2kW
- 3 Phase 200VAC, 0.2kW to 5.5kW
- 3 Phase 400VAC, 0.2kW to 5.5kW
V/f control
RoHS compliance
Preferred parameter feature
Starting torque of 150% at 3 Hz
Side-by-side installation due to patented hybrid heatsink
One-touch copy function with verify with 5-digit LED keypad
Increased vibration resistance, from 20 Hz to 50 Hz (0.65G)
Dual rating: Normal Duty and Heavy Duty
1 in 10,000 failure rate
Swing PWM function to decrease noise at low carrier frequencies
Pre-maintenance function
Modbus communication
Reduction in mechanical parts to increase MTBF
Cooling fan replacement without tools
MTBF: 28 years
Short Circuit Current Rating (SCCR): 30kA rms symmetrical
Built-in dynamic braking transistor
Common programming with all other Yaskawa drives
Fan
Pump
Mixers
Overhead shutter
Conveyor
Food & Beverage Machinery
Shutter door - Open/close
Agriculture Machineries
Commercial Machineries
For Healthcare Applications and Many more
