PG Speed Controller Card
Option Cards
PG Speed Controller Card
Option Cards

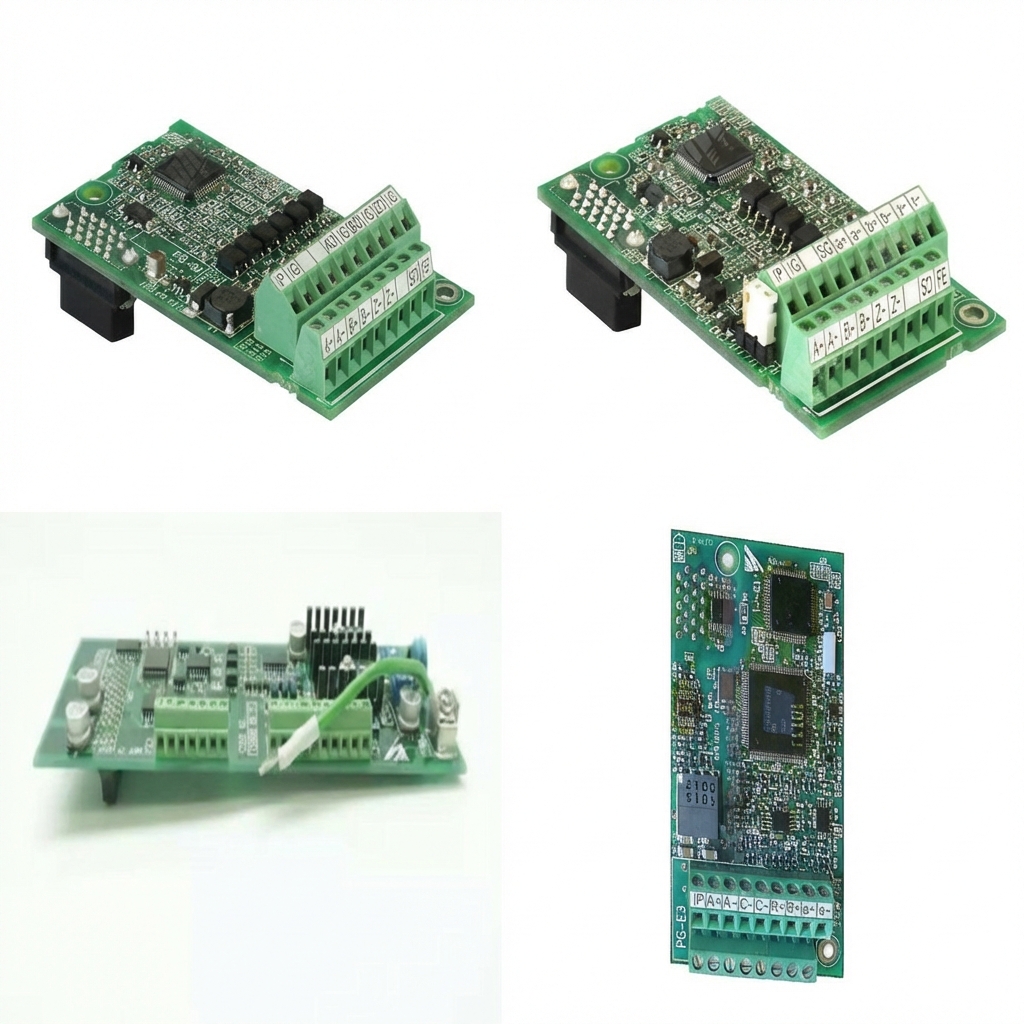

PG Speed Controller Card and its option cards for pulse generators, encoders, and feedback signal detection.
| # | Image | Name | Option Cards | |
|---|---|---|---|---|
| 1 |  |

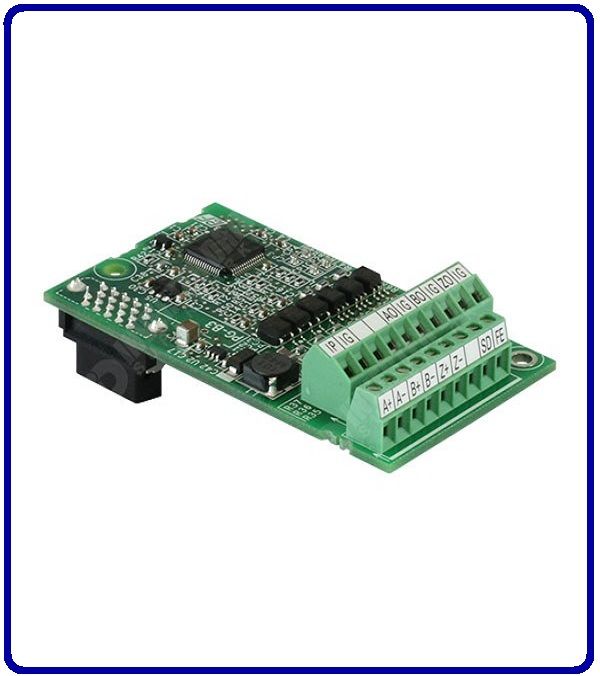

PG- B3 |
For complimentary and open collector types: 3 track (A, B, Z pulse) Single track compatible (A pulse) Maximum input frequency: 50 kHz Pulse monitor output: Open collector Voltage output for PG: 12V, max. 200 mA |
|
| 2 |  |

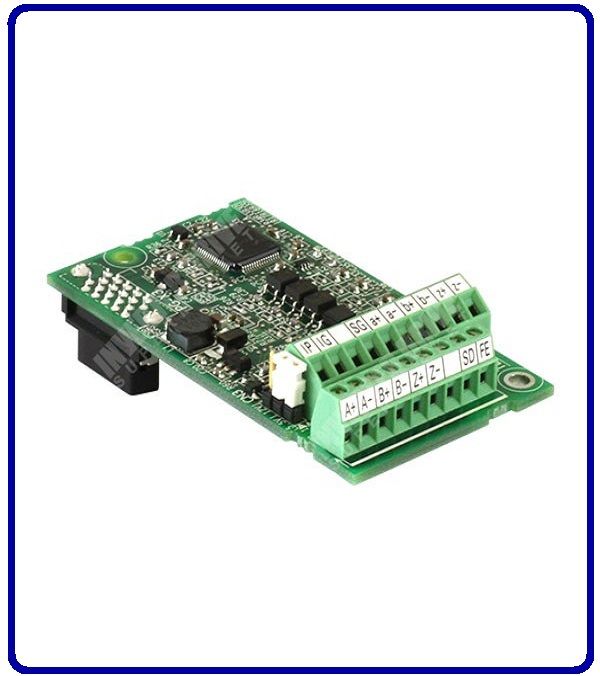

PG- X3 |
For line drivers: 3 track (A, B, Z pulse) Single track compatible (A pulse) Maximum input frequency: 300 kHz Pulse monitor: Matches RS-422 Voltage output for PG: 5 or 12V, max 200 mA |
|
| 3 |  |

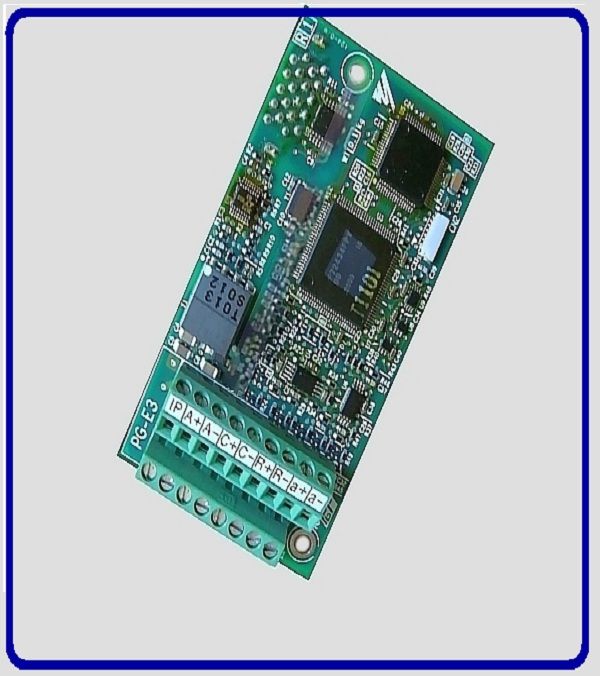

PG- E3 |
Pulse generators and encoders are combined with a feedback signal to detect motor speed. Allows the drive to control the output frequency to keep motor speed constant. |
For HEIDENHAIN: EnDat2.1/01, EnDat2.2/01, EnDat2.2/22: Maximum input frequency: 20 kHz Pulse monitor: Matches RS-422 Voltage output for encoder: 5 V 330 mA max or 8 V, 150 mA max. Encoder cable: 20 m max. * Pulse monitor cable: 30 m max. *Use a 17-pin encoder capable manufactured by HEIDENHAIN. |
| 4 |  |

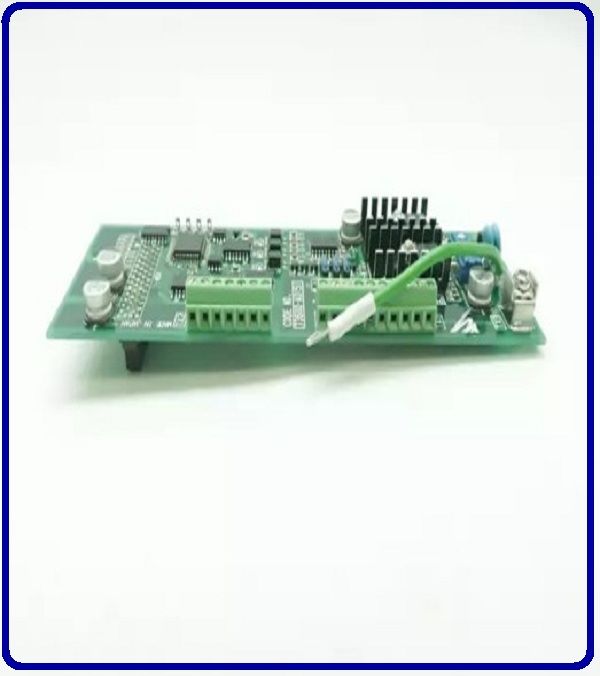

PG- X2 |
It is a unique type of feedback card. | |
| 5 |  |

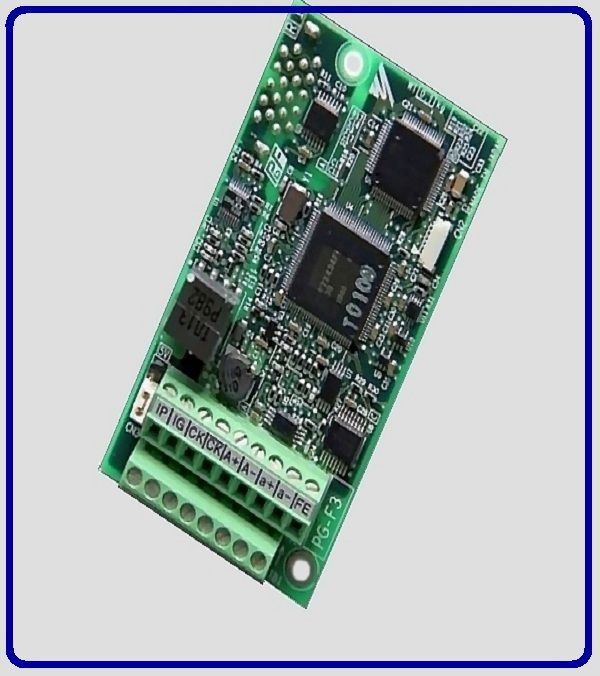

PG- F3 |
This is also a special type of feedback card. |
